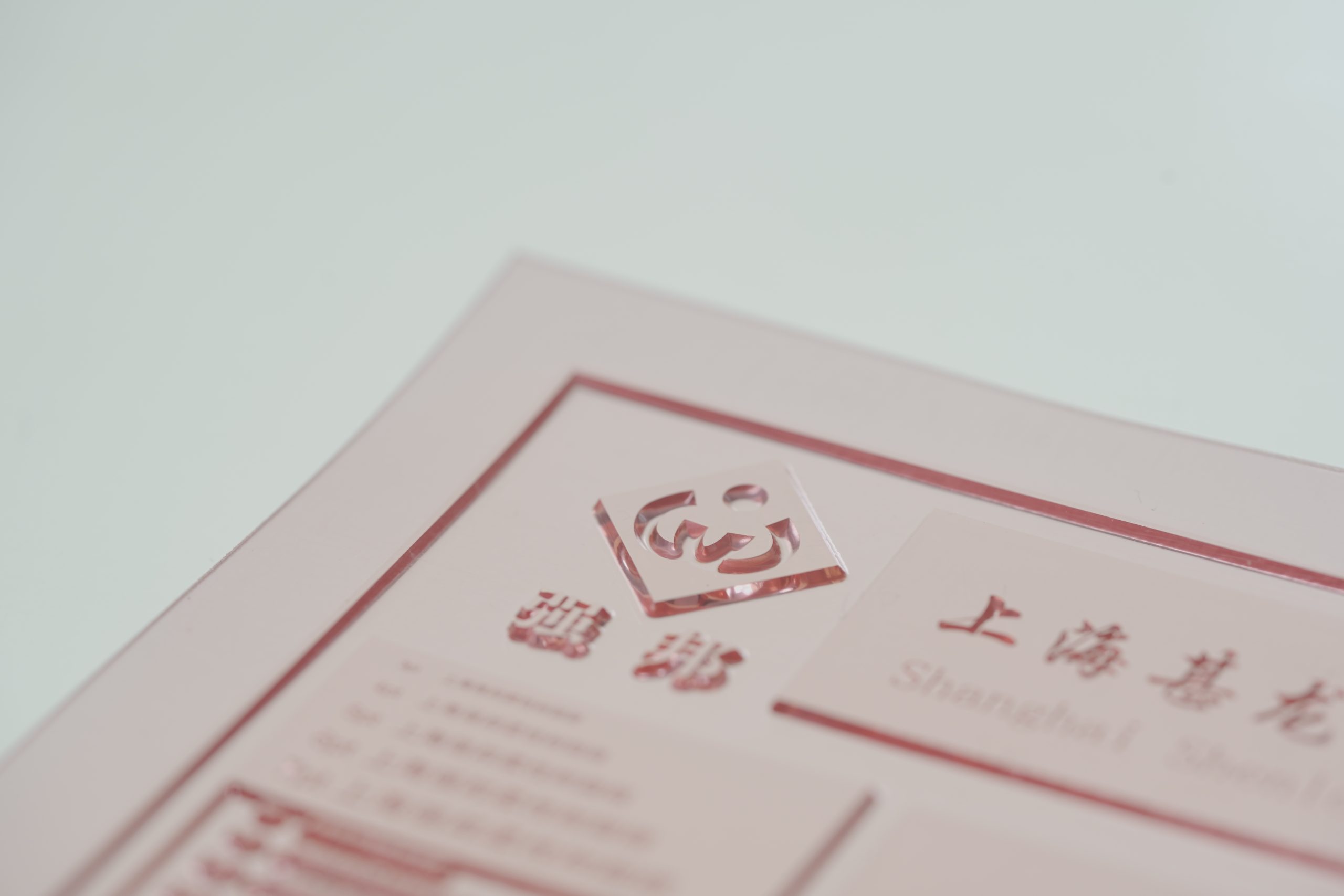

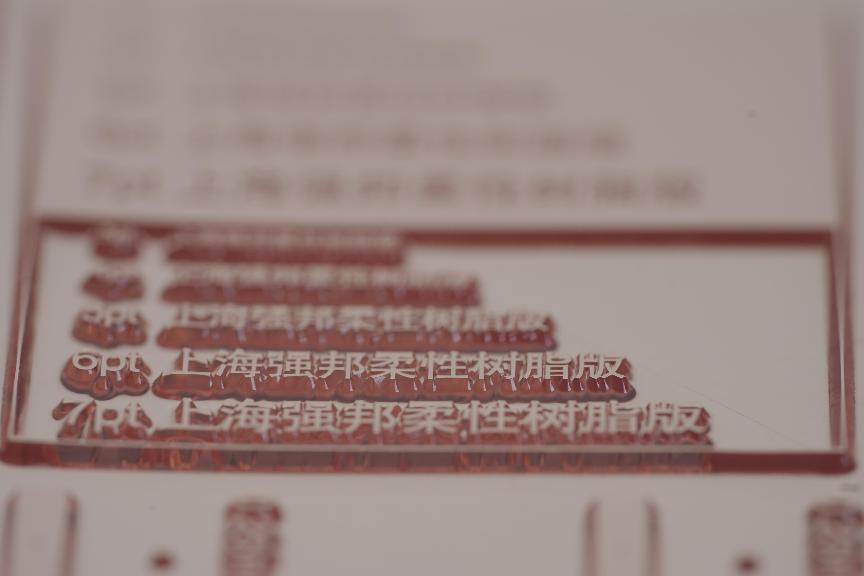

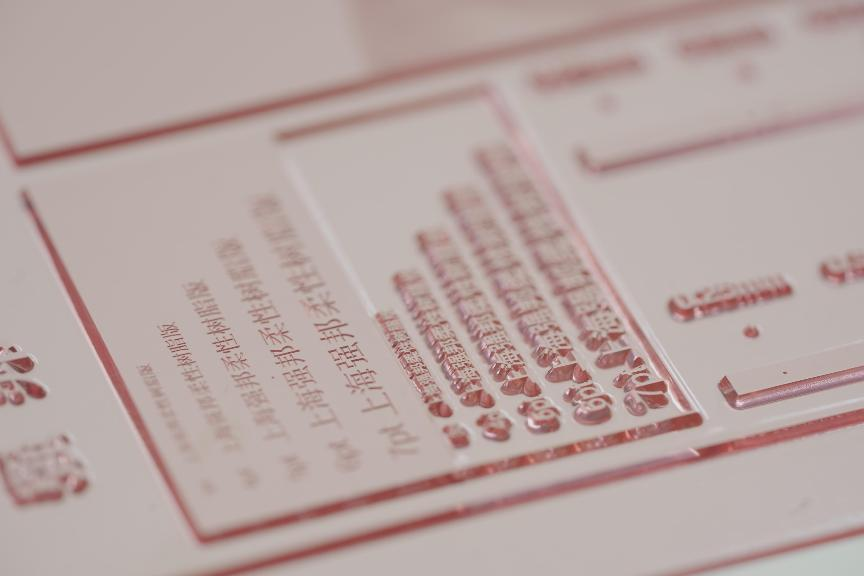

Strong SF-GL Analog Flexo Plates
• Medium hard plate, optimized for the printing of designs that combine halftones and solids in one plate
• Ideal for all absorbent and non-absorbent commonly used substrates (i.e. plastic and aluminium foil, coated and uncoated boards, preprint liner)
• High solid density and minimum dot gain in the halftone
• Wide exposure latitude and good relief depths
• Suitable for the use with water and alcohol-based printing inks
Technical Characteristics and Processing Parameters
| SF-GL | 170 | 228 |
| Technical Characteristics | ||
| Thickness (mm/inch) | 1.70/0.067 | 2.28/0.090 |
| Hardness (Shore Å) | 65 | 53 |
| Image Reproduction | 2 – 95% 133 lpi | 2 – 95% 133 lpi |
| Minimum Isolated Line (mm) | 0.15 | 0.15 |
| Minimum Isolated Dot (mm) | 0.25 | 0.25 |
| Processing Parameters | ||
| Back Exposure (s) | 20-30 | 30-40 |
| Main Exposure (min) | 6-12 | 6-12 |
| Washout Speed (mm/min) | 140-180 | 140-180 |
| Drying Time (h) | 1.5-2 | 1.5-2 |
| Post Exposure UV-A (min) | 5 | 5 |
| Light Finishing UV-C (min) | 5 | 5 |
Note:
1.Contact us for assistance in establishing proper processing conditions.
2.All processing parameters depend on, among others, the processing equipment, lamp age and the type of washout solvent. The above-mentioned values are only to be used as a guide.
3.Suitable for all water based and alcohol-based printing inks. (ethyl acetate content preferably below 15%, ketone content preferably below 5%)
Product list of Strong Solvent Flexo Plate
| Strong Brand | Plate Type | Application | Thickness (mm / inch) | PCS per carton | Hardness (Shore Å) | Total Range (%) | Screen Ruling (LPI) | Minimum Isolated Line (mm) | Minimum Isolated Dot (mm) | Back Exposure (sec.) | Main Exposure (min.) | Washout Speed (mm/min) | Drying Time (h) | UV-A Post Exposure UV-A (min) | UV-C Light Finishing UV-C (min) |
| SF-GL | Analog | Flexible Packaging & Labels | 1.70/0.067 | 12 | 64 | 2 – 95% | 133 | 0.15 | 0.25 | 20-30 | 6-12 | 140-180 | 1.5-2 | 5 | 5 |
| 2.28/0.090 | 10 | 53 | 2 – 95% | 133 | 0.15 | 0.25 | 30-40 | 6-12 | 140-180 | 1.5-2 | 5 | 5 |
