Application
with UV inks for automatical cloth-type washing units
Features
- Pre-impregnated cloth ready to use;
- Impregnated with solvent, suitable for UV inks;

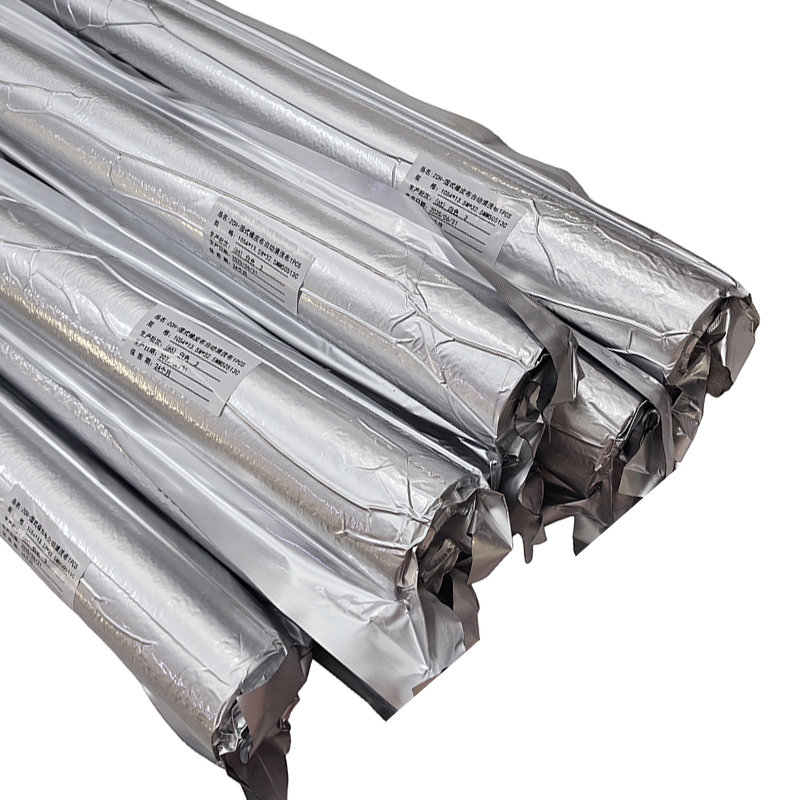

- Packed in vacuum sealed, diffusion tight plastic foil;
- No drying out of the cloth roll in the press;
- Equal distribution of the washing agent in the cloth roll;
- Very high cleaning power;
- Excellent rip, pick and abrasion resistance → no fibre residues on the blanket
- consistent high printing quality after cleaning process
Technical Data
| Colour | white |
| Composition | 55% Cellulose + 45% Polyester fibres |
| Weight | 68 g/m² |
| Tensile strength machine direction | 195 N (10 cm x 5 cm) |
| Tensile strength cross direction | 52 N (10 cm x 5 cm) |
| Elongation machine direction | 22 % (10 cm x 5 cm) |
| Elongation cross direction | 112 % (10 cm x 5 cm) |
| Thickness | 0.36 mm |
Storage
Store horizontally
Product Specification
| HEIDELBERG | ||
| Model | Type | Cloth width(mm)*Cloth length(m)*Pipe inner dia(mm) |
| GTO52 | white dry／blue dry | 540*9*19.50 |
| Sm52 | white dry／blue dry | 537*9*19.50 |
| CD74/72 | white dry／blue dry | 765*13.5*19.50 |
| CD/SM102 | white dry／blue dry | 1040*13*19.50 |
| XI105 | white dry | 1075*13*19.50 |
| CD/SM102 | white wet | 1042*13.5*25.50 |
| CD/SM102 | white wet | 1042*13.5*32.50 |
| XI105 | white wet | 1080*15*25.50 |
| XI105 | white wet | 1080*15*32.50 |
| 162 | white dry | 1650*25*32.50 |
| MITSUBISHI | ||
| Model | Type | Cloth width(mm)*Cloth length(m)*Pipe inner dia(mm) |
| D1000 | white wet | 740*9*12.50 |
| 3E/3H/D3000 | white dry | 1054*13.5*32.50 |
| D3000 | white wet | 1054*13.5*32.50 |
| Diamond3000 | white wet | 1080*17*25.50 |
| New model | white wet | 1074*11*32.50 |
| KOMORI | ||
| Model | Type | Cloth width(mm)*Cloth length(m)*Pipe inner dia(mm) |
| 35S | white wet | 920*13.5*32.50 |
| 38S | white wet | 1000*13.5*32.50 |
| G40/S40/L40 | white wet | 1054*13.5*32.50 |
| A37/G37 | white wet | 965*9*12.50 |
| L429 | white wet | 774*9*12.50 |
| L44 | white wet | 1174*13.5*32.50 |
| KBA | ||
| Model | Type | Cloth width(mm)*Cloth length(m) |
| 75# | white dry／blue dry | 750*500 |
| 105# | white dry／blue dry | 1070*500 |
| 106# | white dry／blue dry | 1090*500 |
| 142# | white dry／blue dry | 1460*500 |
| 145# | white dry／blue dry | 1490*500 |
| 162# | white dry／blue dry | 1660*500 |
| 164# | white dry／blue dry | 1680*500 |
| 185# | white dry／blue dry | 1890*500 |
| 205# | white dry／blue dry | 2090*500 |
