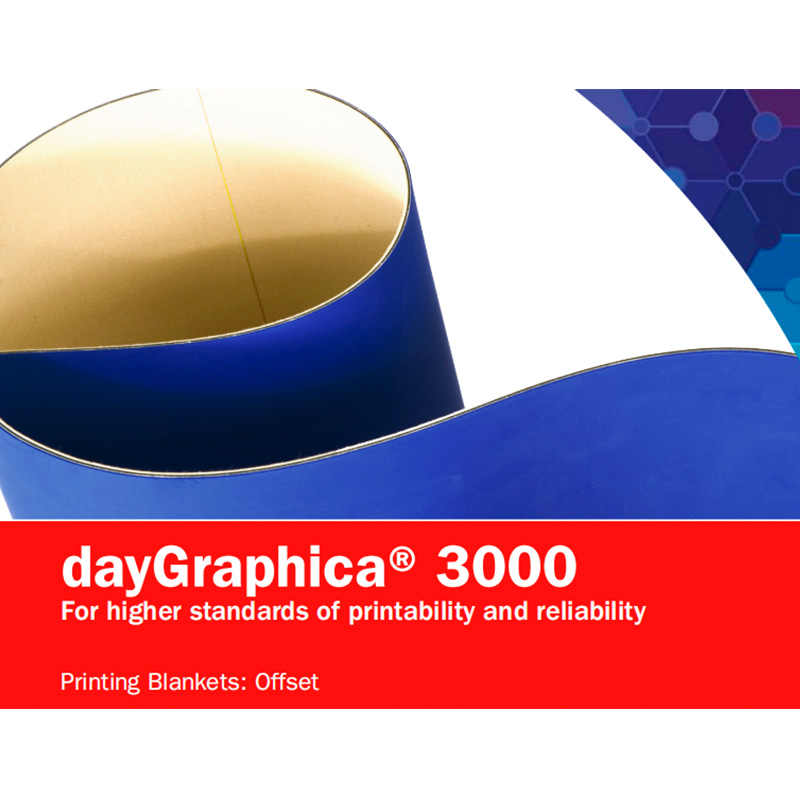

Check the dots on your next print job using the dayGraphica® 3000. They’re rounder with consistently sharp, hard edges. Halftones are crisper, solids are rich and even. The dayGraphica® 3000 transfers everything on the plate. Feedback from printers who use the dayGraphica® 3000 indicate print, contrast and density values hit the target for quality. Plus, you’ll benefit from longer blanket life and greater value with effective smash resistance and reduced fluctuations in ink pick-up
Advantages of dayGraphica® 3000
- Uniform gauge and consistency
- Maximum release characteristics
- Blanket will achieve precise and even printing pressure across
- entire printing surface–a key factor in blanket durability
- Rebounds quickly
- Effective on evolving waterless systems
Application
SHEETFED. LARGE COMMERCIAL. MEDIUM COMMERCIAL.
HEATSET. COMMERCIAL PUBLICATION. INSERT/DIRECTORY.
Specifications
| Color: | Dark Blue |
| Surface: | 3 Ply 1,70mm/.67” Nominal 4 Ply 1,96mm/.77” Nominal |
| Face Compound: | Solvent Resistant Rubber Blend |
| Hardness: | 78° Shore A |
| Compressibility Deflection: | 3 Ply 0,10mm at 1060 kPa / .004” at 154 psi Typical 3 Ply 0,16mm at 2060 kPa / .006” at 299 psi Typical 4 Ply 0,12mm at 1060 kPa / .005” at 154 psi Typical 4 Ply 0,18mm at 2060 kPa / .007” at 299 psi Typical |
| Elongation: | 3 Ply 1,0% at 10 N/mm/1.0% at 57 ppi Typical 4 Ply 0,9% at 10 N/mm/0.9% at 57 ppi Typical |
| Tensile Strength: | 3 Ply 92 N/mm/525 ppi Typical 4 Ply 112 N/mm/640 ppi Typical |
